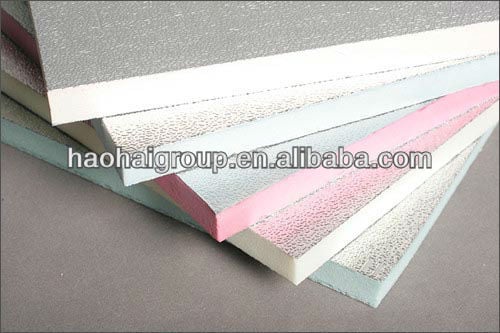

PU PIR Insulated Panel Duct Board P3
PU PIR Insulated Panel Duct Board P3
PU PIR Insulated Panel Duct Board P3
PU PIR Insulated Panel Duct Board P3

PU PIR Insulated Panel Duct Board P3

Introduction

Characteristics

Light, safe, decrease the load of the building.

Easy to install, shorten the construction period.

Protect environment, sandwich structure with antioxidant surfaces.

High performance in heat insulating, can be served in both high and low temperature environment.

Fireproof, meet the National standard, makes building safe.

Soundproof, makes a quieter environment.

No need to leave space for insulation material installing, so that the story height can be reduced.

Long service life up to 20 years, very low cost in wastage and maintenance.

Nice appearance.


Haohai duct system including

Haohai duct panels

Accessories for Haohai duct

Training and service for duct installation

Datasheet of tech & safety for duct installation

Undertake projects of duct installation

Product Data Sheet

Smoke temperature
125°C
Flame height  15mm
Thickness of panel  20mm
Density  40~69kg/m3
Compressive strength,10%  0.2MPa
Dimension stability  0.5%
Thermal conductivity  0.021w/m.k
Working temperature  -50 to +80°C

Comparison between Haohai duct and other ducts

Item
Haohai duct
Zincification duct
Fiberglass duct
XPS
Thermal
conductivity
excellent
poor general general
Weight(kg/m²)
1.3-1.4
8.32 8.8 1.1~1.3
Flame Retardancy
  Phenolic   A class
      PU      B1 class
A class A class ------
Service life
15~20 years
6~7 years 10~15 years 15~20 years
Contaminant
Never
Yes Yes
A little

Installation

speed

Fast
Slow
Slow
Fast

Installation

effect

Easy to install, nice appearance, high efficiency Complex install, low efficiency Complex install, low efficiency Easy to install, nice appearance, high efficiency
Maintenance Low High High Low

Haohai duct satisfies the following standards:

•  GB50243-2002

     Acceptance standard for construction quality of HVAC works.

•  GB50045-95

     Criterion of fireproof design of civil tall buildings.

Environment

Inspected by the National Construction Material Test center,

Haohai duct passed the formaldehyde volatilization test, could be applied indoor directly.

Approved by the National Quality Test Center and China Construction Material Association,

    Haohai duct is a stable qualify, safe and environment protective product.

Inspected by Shanghai quality monitor inspection spot, if s innocuous and a safe product.

There is no Freon in Haohai duct, and won, t destroy aerosphere.

As a result of low water absorbability of Haohai duct, it won5 t bring germ in the duct.

Installation Accessories

Various flanges,H bayonet, Hooked hanger bracket, Aluminum shaped disk, Covering angle, G.I.

Square, etc.

658 034__.jpg

 Installation




Haohai


The PU PIR Insulated Panel Duct Board P3 is the perfect solution for all your HVAC (Heating, Ventilation, and Air Conditioning) needs. Made from high-quality polyurethane and polyisocyanurate, our duct board is the perfect insulation material for HVAC systems in commercial and industrial buildings.


Not merely energy-efficient but eco-friendly. with excellent conductivity is thermal it provides incomparable insulation performance, making it an ideal choice for structures. Created with an aluminum is rigid facing, it enhances durability and promotes heat retention, ensuring your heating or cooling system operates efficiently.


An easy task to install and is cut into manageable sizes according to the requirements of one's building. It can help to lessen energy consumption, running costs, and encourages a comfy environment is living your establishment. Our Haohai product is available in various thicknesses and is customized to meet your requirements specific.


Our product is fire-resistant, ensuring your building is safe in case of a fire outbreak. A fire score, it gives security and promotes peace of mind with a class. The panel is insulated board is additionally waterproof, it doesn't take in moisture, making it a great material for buildings with high moisture amounts. It's resistant to rot, decay, and mildew, ensuring it offers a solution is durable.


You not only take advantage of a durable and energy-efficient product, but you enjoy improved indoor air quality whenever you utilize Haohai's PU PIR Insulated Panel Duct Board P3. It minimizes the transfer of allergens and other harmful particulates from your HVAC system, promoting a full-time income environment is healthy.


Haohai's PU PIR Insulated Panel Duct Board P3 is a cost-effective, eco-friendly, and durable solution for all your HVAC needs. It guarantees safe, comfortable, and energy-efficient living spaces while improving indoor air quality. Contact us today to make your order and enjoy the benefits of our excellent product.
